DT-350-PH & DT-360-PH Uni-Slide
Uni-Slide Systems with automatic linear slide

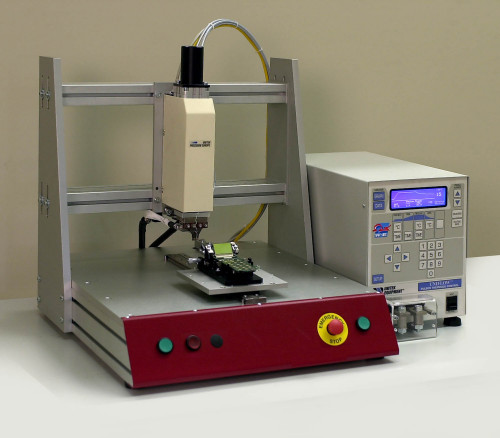

DT-350-PH Uni-Slide System

Uniflow Power Supply

Kapton Feeder Module
The Desktop DT-350-PH and DT-360-PH Uni-Slide Systems are part of a line of (semi-) automatic systems developed for Hot-Bar Soldering. The "PH" stands for the pulsed heat hot-bar (alternative Constant Heat can be delivered). The model "350" has an automatically operated 2-position slide, whereas the model "360"has a 3-position slide. The Desktop Series delivers the same high connection quality as the larger and more sophisticated systems. It offers an ideal price – performance (throughput) ratio. The slide enables easy loading and unloading of the parts, directly in front of the operators. If the parts need to be aligned, it can be done in the front position where the operator or camera have sufficient free space and a view that isn't blocked by the bonding head. The automatic slide makes the parts positioning more controlled compared to manually operated slides, and it enables the operator to spend time on other actions: for example preparing the next parts.
Recommended options:
Kapton Feeder Module
To avoid pollution of the thermode and to keep solder joint quality at the highest level, a Kapton Feeder Module can be used between the thermode and the products. This module consists of tow reels (spools). One spool holds a full reel of kapton, the other one winds the used kapton. The Kapton Feeder Module can be installed on each desktop system.

Alignment Module
If your parts require a very accurate (fine-pitch) alignment, we recommend to use an Optical Alignment Module. This includes a CCD camera with a special lens, special illumination, monitor and power supplies. The optical system magnifies and displays the track on the monitor. Operator speed and operator accuracy will surely increase.

Product Jig Module
Using the high quality MIYACHI EUROPE product jigs ensures optimum process quality. Product jigs are extremely important because bonding quality is influenced by co-planarity of the jigs, fine-alignment of the parts and materials used for the supporting blocks. We have many years of experience making jigs for a broad range of applications and processes. Ask our sales specialists about these modules.

Desktop Series Datasheet (ca. 100 kB)pdf
Kapton Feeder Datasheet (ca. 100 kB)pdf
